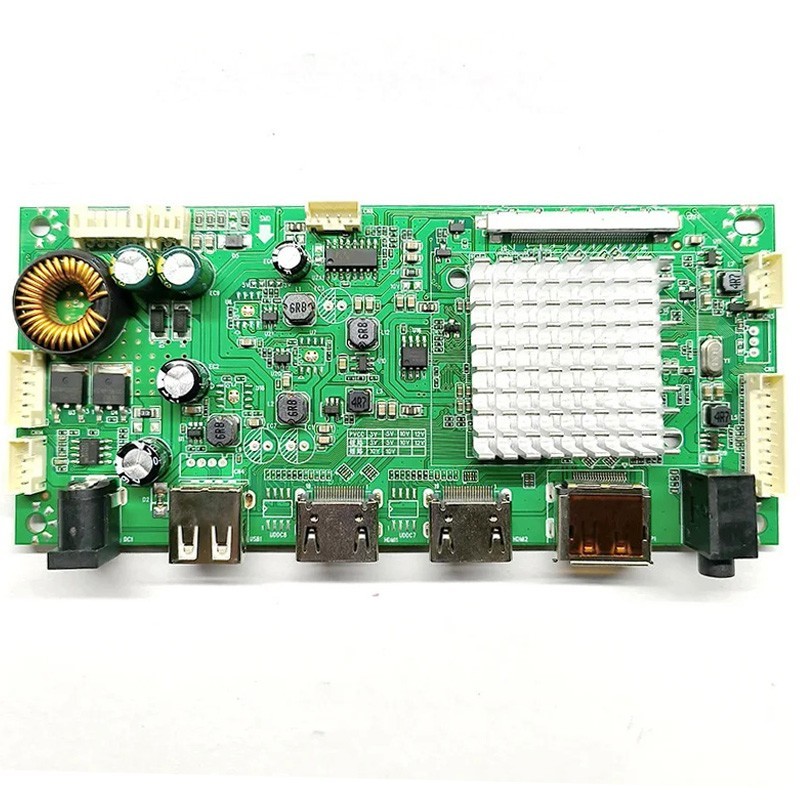

MH08D 4K LCD Controller Board V-By-One EDP with HDMI DP input

MH08D 4K LCD Controller Board V-By-One EDP with HDMI DP input

Function Overview

MH08D LCD monitor control motherboard supports 4096*2160 and below resolution LCD Panel with RTD2775QT/RTD2795 as main chip.

The main chip RTD2775QT/RTD2795 converts two HDMI/one DP digital signals output from PC to V-B-O/eDP signals that can be supported by the LCD module. The design is mainly used for connecting TFT LCD PANEL, which can achieve the highest resolution up to UHD, and has special functions such as DCR (Dynamic Contrast Ratio Adjustment), Color Enhancement, Color Engine, etc., which can make the color reproduction more lifelike, vivid and vivid, and also support HDCP function. Synchronized automatic detection can be realized. Synchronization detection requires the use of line-field separation of the synchronization signal; with a beautiful 0SD interface style, a variety of optional OSD language. The software on the motherboard supports online update, and the maximum output resolution can support up to 4096*2160.
